EN593 Lug Type Butterfly Valve

1.Size:DN40-DN600;2’’-24’’
2.Medium:water
3.Standard:EN593/AWWA C504/MSS SP-67
4.Pressure:CLASS 125-300/PN10-25/200-300PSI
5.Material:CI,DI
6.Type:wafer type,lug type,double flange type,U type,groove-end

TECHNICAL REQUIREMENT :
    ● Design and Manufacture Conform to EN593, API609
    ● Flange dimensions Conform to EN1092-2/ANSI B16.1
    ● Face to Face dimensions Conform to EN558-1
    ● Testing Conform to EN12266-1, API 598
    ● Driving mode: lever, worm actuator, electric, pheumatic

Product Introduction

NO.	Part Name	Material	Optional Material
1	Body	DI	CI, WCB, Stainless Steel
2	Down Bearing	F4	Bronze
3	Seat	NBR	EPDM, FKM
4	Disc	Plated Ductile Iron	ASTM A351 CF8/CF8M, B148 C954/C958
5	Shaft	ASTM A276 416	316, 17-4PH
6	Middle Bearing	F4	Bronze
7	Upper Bearing	F4	Bronze
8	O Ring	NBR	EPDM, FKM

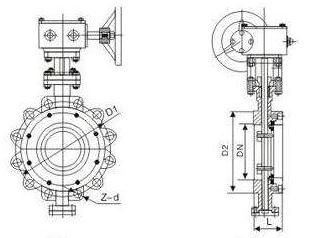

Dimensions data(mm)

DN	A	B	C	H	ΦE	ΦF	N-ΦK	Φd	G	EN1092-2 PN10			EN1092-2 PN16			ANSI CLASS 125
										ΦD	n-Φd1	n-M	ΦD	n-Φd1	n-M	ΦD	n-Φd1	n-M
DN40	120 (140)	75	33	32	90	50	4-Φ7	12.6	9.5	110	4-Φ19	4-M16	110	4-Φ19	4-M16	98.5	4-Φ16	4-1/2"
DN50	124 (161)	80	43	32	90	50	4-Φ7	12.6	9.5	125	4-Φ19	4-M16	125	4-Φ19	4-M16	120.5	4-Φ19	4-5/8"
DN65	134 (175)	89	46	32	90	50	4-Φ7	12.6	9.5	145	4-Φ19	4-M16	145	4-Φ19	4-M16	139.5	4-Φ19	4-5/8"
DN80	141 (181)	95	46	32	90	50	4-Φ7	12.6	9.5	160	8-Φ19	8-M16	160	8-Φ19	8-M16	152.5	4-Φ19	4-5/8"
DN100	156 (200)	114	52	32	90	70	4-Φ10	15.8	11.1	180	8-Φ19	8-M16	180	8-Φ19	8-M16	190.5	8-Φ19	8-5/8"
DN125	168 (213)	127	56	32	90	70	4-Φ10	18.92	12.7	210	8-Φ19	8-M16	210	8-Φ19	8-M16	216	8-Φ22	8-3/4"
DN150	184 (226)	140	56	32	90	70	4-Φ10	18.92	12.7	240	8-Φ23	8-M20	240	8-Φ23	8-M20	241.5	8-Φ22	8-3/4"
DN200	213 (260)	175	60	45	125	102	4-Φ12	22.1	15.9	295	8-Φ23	8-M20	295	12-Φ23	12-M20	298.5	8-Φ22	8-3/4"
DN250	244 (292)	220	68	45	125	102	4-Φ12	28.45	22	350	12-Φ23	12-M20	355	12-Φ28	12-M24	362	12-Φ25	12-7/8"
DN300	283 (337)	255	78	45	150	125	4-Φ14	31.6	24	400	12-Φ23	12-M20	410	12-Φ28	12-M24	432	12-Φ25	12-7/8"
DN350	368	267	78	45	150	125	4-Φ14	31.6	24	460	16-Φ23	16-M20	470	16-Φ28	16-M24	476	12-Φ29	12-1"
DN400	400	323	102	50	150	125	4-Φ14	33.15	27	515	16-Φ28	16-M24	525	16-Φ31	16-M27	539.5	16-Φ29	16-1"
DN450	422	342	114	50	210	140	4-Φ18	37.95	27	565	20-Φ28	20-M24	585	20-Φ31	20-M27	578	16-Φ32	16-1 1/8"
DN500	479	373	127	60	210	140	4-Φ18	41.12	32	620	20-Φ28	20-M24	650	20-Φ34	20-M31	635	20-Φ32	20-1 1/8"
DN600	562	467	154	70	210	165	4-Φ22	50.62	36	725	20-Φ31	20-M27	770	20-Φ37	20-M33	749.5	20-Φ35	20-1 1/4"
