What Is a Butterfly Valve

A butterfly valve（bfv valve） is a type of quarter-turn valve that is used to regulate the flow of a fluid (gas, liquid, or powder) through a pipe. It is called a "butterfly" valve because of the wing-like disc that rotates inside the valve body to control the flow.

Butterfly Valve: Working Principle

The construction of a butterfly valve is relatively simple, with the rotation of the valve disc controlling the fluid flow. In the closed position, the disc blocks the valve bore while in the open position, the disc is oriented perpendicular to the flow direction to allow flow. Butterfly valves generally provide bi-directional flow and shutoff capability. However, they are not full-bore, which renders them unsuitable for pigging or swabbing. The body material is ductile iron with an epoxy powder coat on both internal and external surfaces. The valves are typically operated by handwheels, gears, or actuators, or a combination thereof, according to the specific application requirement and technical specifications.

Detailed Operation

Disc Rotation: The core component of the butterfly valve is the disc, which rotates to control the flow.

Closed Position: When the disc is perpendicular to the direction of flow, it completely blocks the passage, stopping any fluid from passing through.

Open Position: Rotating the disc 90 degrees aligns it with the flow direction, allowing fluid to pass through the valve.

Key Features

Bi-Directional Flow: These valves can handle flow from either direction, providing versatile shutoff capabilities.

Material and Coating: Constructed from ductile iron and coated with epoxy powder inside and out, these valves offer robust corrosion resistance.

Limitations

Not Suitable for Pigging: Due to their non-full-bore design, butterfly valves are not ideal for applications requiring pigging or swabbing.

Actuation Methods

Butterfly valves can be operated by various methods:

• Handwheels: Simple manual operation.

• Gears: Facilitates easier turning of the disc.

• Actuators: Automated operation for more complex systems.

Key Features Of A Butterfly Valve Include:

Disc

The disc is the central component of the valve that controls the flow. It is mounted on a spindle in the center of the valve body and can be rotated 90 degrees to either allow or block the flow of the fluid.

Valve Body

The valve body contains the passageway through which the fluid flows. It is typically made of metal or other durable materials.

Actuator

Butterfly valves can be operated manually or with the help of an actuator. The actuator is a mechanism that automates the valve's operation, allowing it to be controlled remotely.

Types of Actuators for Butterfly Valves

1. Manual Valve Operation:

• This is the simplest form of actuation, using a wheel or lever to control the position of the stem and disc.

• Manual operators are inexpensive and typically used with smaller valves requiring lower torque.

• They are ideal for applications without power availability but are slower, making them unsuitable for emergency shut-off scenarios.

2. Electric Valve Actuators:

• These actuators contain a gearbox that adjusts motor speed, varying the torque as needed.

• They are easy to maintain, simple to install, and operate quietly.

• The valve's position is controlled by voltage or current signals and can include limit switches to stop the actuator when fully open or closed.

• Ideal for environments with a stable power supply.

3. Rack and Pinion Actuators:

• These pneumatic actuators use springs in a chamber, operating via compressed air.

• Available in single or double acting, they are compact, lightweight, and relatively inexpensive.

• They offer quick reaction times, suitable for throttling services, but require an external compressed air supply.

4. Scotch Yoke Actuators:

• Operated with either compressed air or hydraulic fluid, these actuators feature a crank and piston mechanism.

• They allow for modular maintenance and produce higher torque, making them suitable for larger valves.

• Though larger and more costly than rack and pinion types, they can be equipped with control accessories for quick acting or soft closing applications.

5. Hydraulic Valve Actuators:

• These actuators use hydraulic force to control the disc and stem positions.

• Available in single or double acting variants, they handle very large or heavy-duty valves requiring significant torque.

• Single acting types keep the valve closed in the absence of fluid pressure, while double acting types use a hydraulic pump to open and close the valve.

• Can be paired with solenoids for better position control.




Incorporating these various actuator types ensures butterfly valves can be tailored to meet specific operational needs, enhancing both functionality and efficiency.

Lever or Gear Handle

In manually operated butterfly valves, there is often a lever or gear handle connected to the spindle. Turning the handle or lever rotates the disc and, consequently, controls the flow.

Butterfly valves are known for their simplicity, lightweight design, and quick operation. And it has a variety of advantages and features, making it a multi-functional device widely used in a variety of industries and applications.

Here Are Some Common Uses Of Butterfly Valves:

HVAC Systems:

Butterfly valves are frequently used in heating, ventilation, and air conditioning (HVAC) systems to regulate the flow of air and water. They help control the temperature and airflow in buildings and industrial facilities.

Water Treatment Plants:

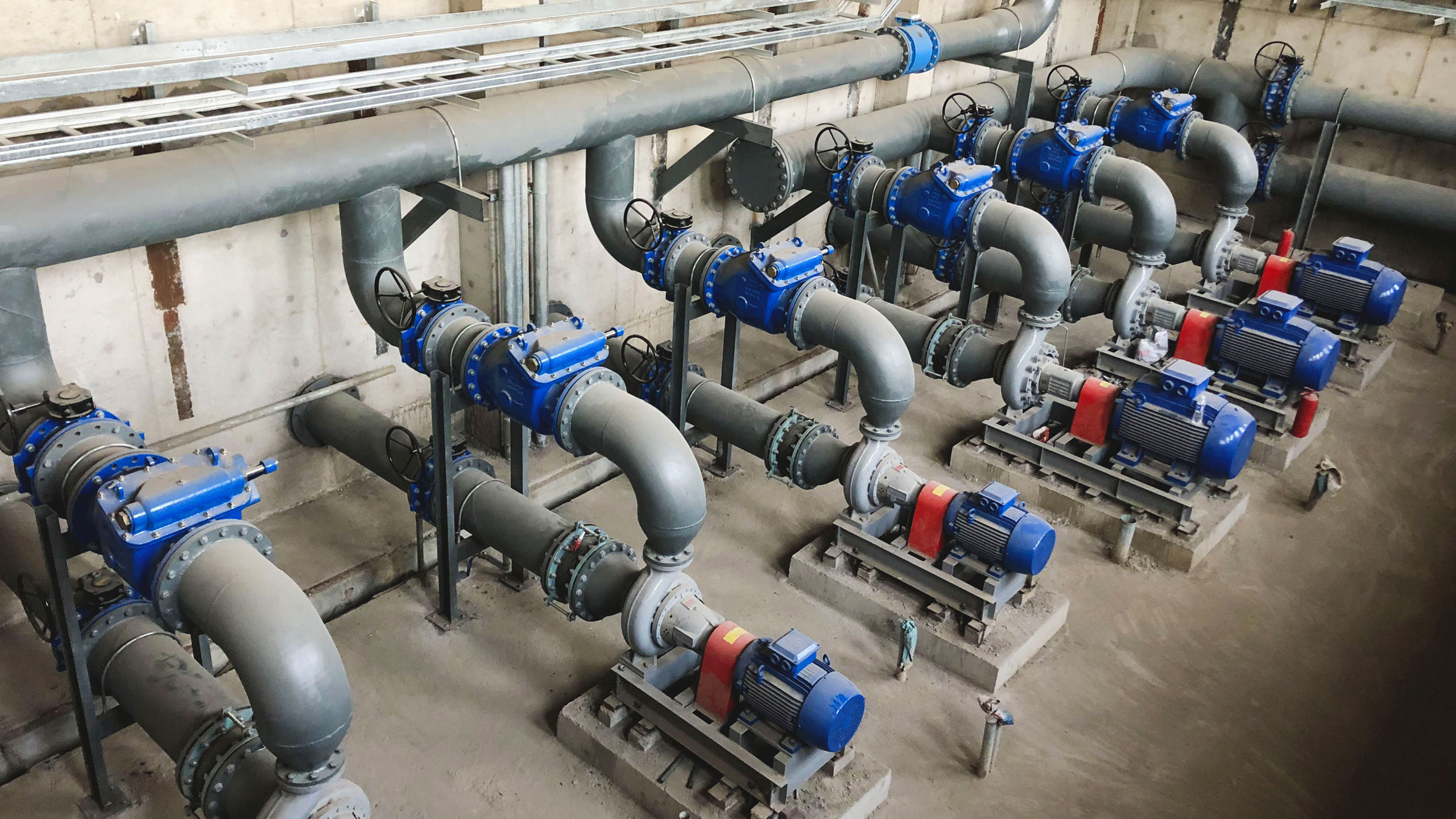

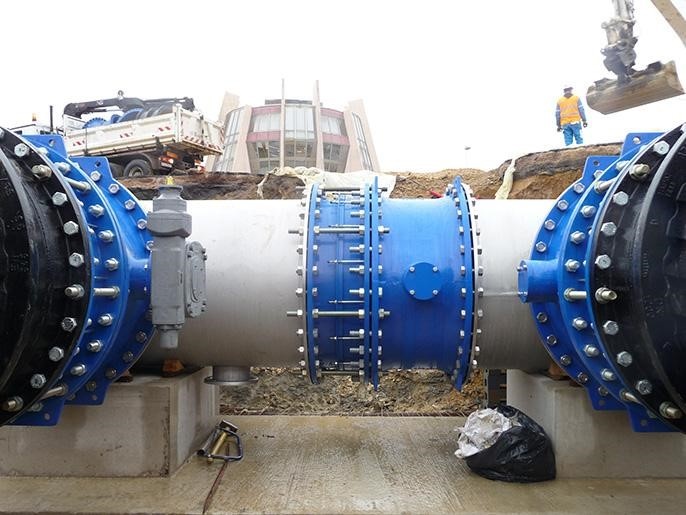

In water treatment facilities, butterfly valves are employed to regulate the flow of water through different stages of the treatment process. They are also used in water distribution systems for municipalities and industries.

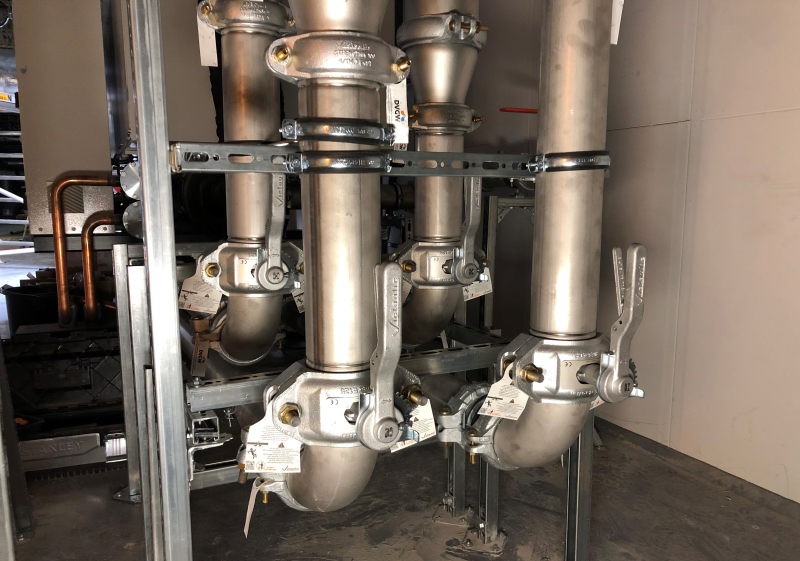

Industrial Processes:

Butterfly valves are integral components in many industrial processes where fluid flow regulation is essential. Industries such as chemical processing, food and beverage, pharmaceuticals, and oil and gas utilize butterfly valves in pipelines and systems to control the flow of liquids, gases, and powders.

Marine and Shipbuilding:

Butterfly valves are used in marine applications for controlling the flow of water, fuel, and other fluids on ships and vessels. They are valued for their compact design and ease of operation.

Fire Protection Systems:

Butterfly valves play a crucial role in fire protection systems by controlling the flow of water in fire hydrants, sprinkler systems, and fire suppression systems. Their quick operation is beneficial during emergencies.

Wastewater Treatment:

Butterfly valves are employed in wastewater treatment plants to regulate the flow of sewage and wastewater through various treatment processes, including sedimentation, filtration, and disinfection.

Power Generation:

Butterfly valves are used in power plants to control the flow of steam, water, and other fluids in boilers, cooling systems, and other power generation equipment.

Chemical Processing:

In chemical plants, butterfly valves are utilized to regulate the flow of corrosive chemicals, acids, and other hazardous fluids. They are selected for their compatibility with a wide range of chemical substances.

In addition to these benefits, butterfly valves have several other key advantages:

Reduced space and weight: butterfly valves take up less space and are lighter than ball, check, globe and gate valves.

Ease of installation: butterfly valves are smaller and lighter than gate valves, making them less difficult to install.

Cost-effective: the cost of replacing or repairing a butterfly valve is usually lower than that of a ball valve, making it a cost-effective option.

However, it is important to note that butterfly valves have some limitations. Even when fully open, a portion of the valve flap always faces the fluid, so the ports are blocked. This makes them unsuitable for heavy slurry applications, which are more suited to knife gate valves or severe service ball valves.

Despite these limitations, butterfly valves remain highly adaptable for both isolation and light control/throttling service, making them an excellent choice for many different environments.
