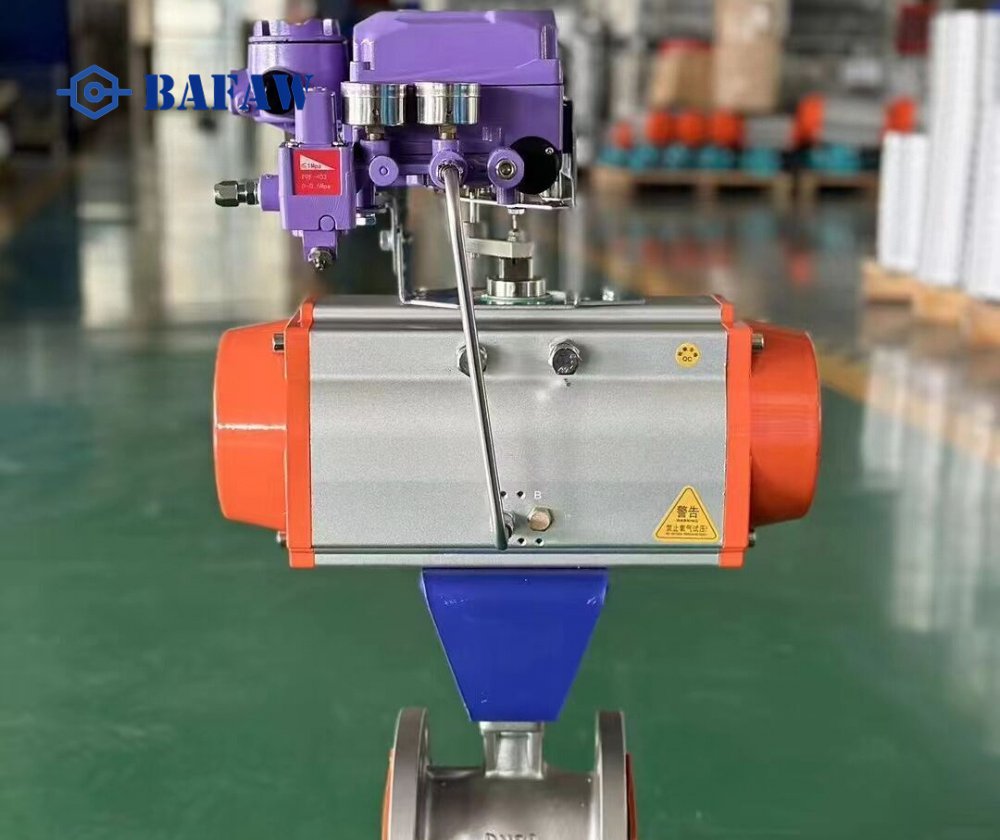

V port Pneumatic Ball Valve

Which industries are v port ball valves used in?

V port ball valves are valve components used in various industries for flow control applications. They are most commonly used in the chemical, power plant, oil & gas, iron & steel, and food industries. In these industrial settings, v port ball valves offer a combination of durability and precision that can’t be achieved through other types of flow control components.

V port ball valves feature an adjustable seat angle that allows for the regulation of fluid flow with extreme accuracy and repeatability. Additionally, they maintain tight closure characteristics at high pressure levels to ensure safety during operation. As such, v port ball valves are ideal for applications such as shutoff operations, temperature / pressure control systems or process automation programs where reliable performance is essential for optimal system operation and efficiency.

The v port Pneumatic ball valve offers precise control over flow rates, making it ideal for temperature and flow control, steam control, cavitation, level control, and PH service. Its size ranges from 1/2” to 20” with body made of stainless steel and carbon steel while the ball is also composed of stainless steel and carbon steel. In addition, the seats are made of PTFE, RPTFE or PEEK depending on the application. The connection ends have a wide variety of options such as threaded (NPT), socket weld, butt weld, quick clamp and raised face flanges. Furthermore, pressure ratings range from Class 150 to Class 600.

There are various ports available too such as 15° V-Port, 30° V-Port, 60° V-Port or 90° V-Port along with custom slotted ports or custom V-Ports. Installing this product will provide increased linear response due to its in-line design which provides better media control with rapid response times. For even more precision a pneumatic actuator can be added with an output torque ranging from 10Nm to 8000 Nm plus double acting and single acting normally closed or open options available in addition to solenoid valves, limit switch boxes and other accessories if necessary. Get your v port Pneumatic ball valve now for optimal controlled performance!
