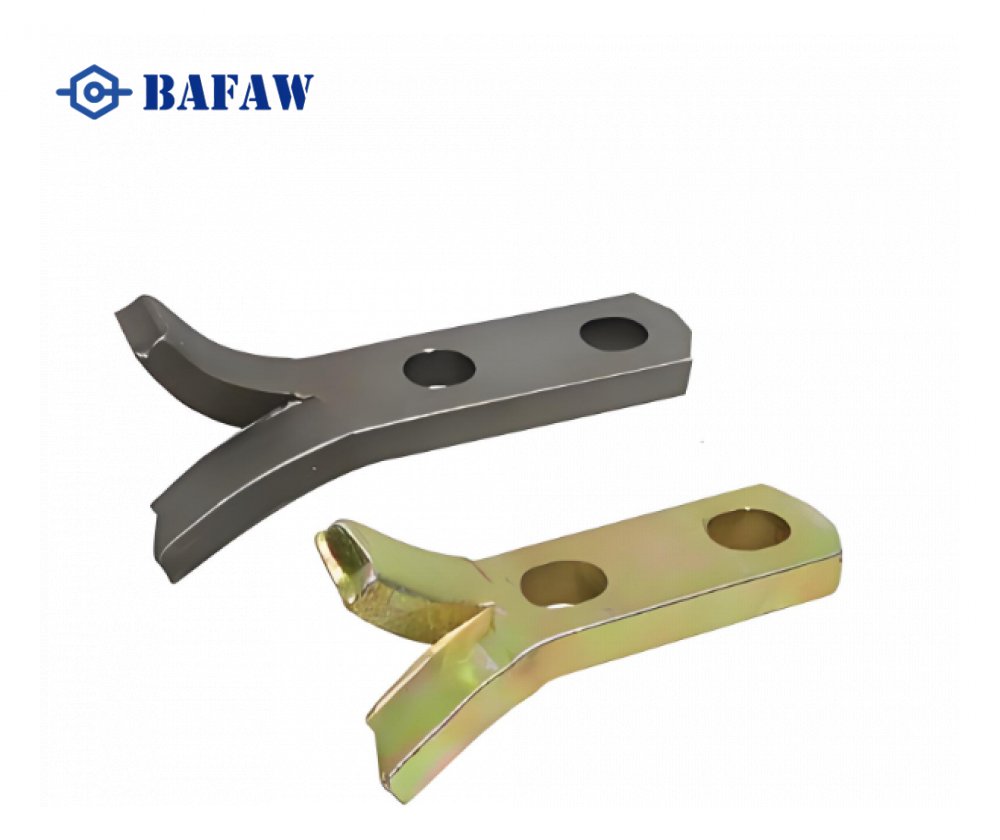

Two Hole Anchor | ||||||
Load rate(ton) | Size | Dimensions(mm) | Weight(KG) | |||
h | a | b | c | |||
1.4 | 1.4T-90 | 90 | 30 | 14 | 6 | 0.09 |
2.5 | 2.5T-90 | 90 | 30 | 14 | 10 | 0.17 |
3 | 3T-120 | 120 | 40 | 18 | 10 | 0.3 |
4 | 4T-120 | 120 | 40 | 18 | 12 | 0.37 |
5 | 5T-120 | 120 | 40 | 18 | 15 | 0.45 |
7.5 | 7.5T-160 | 160 | 60 | 26 | 16 | 0.96 |
10 | 10T-170 | 170 | 60 | 30 | 20 | 1.19 |
14 | 14T-240 | 240 | 80 | 35 | 20 | 2.56 |
22 | 22T-300 | 300 | 90 | 35 | 28 | 4.08 |
26 | 26T-300 | 300 | 120 | 65 | 30 | 7.2 |

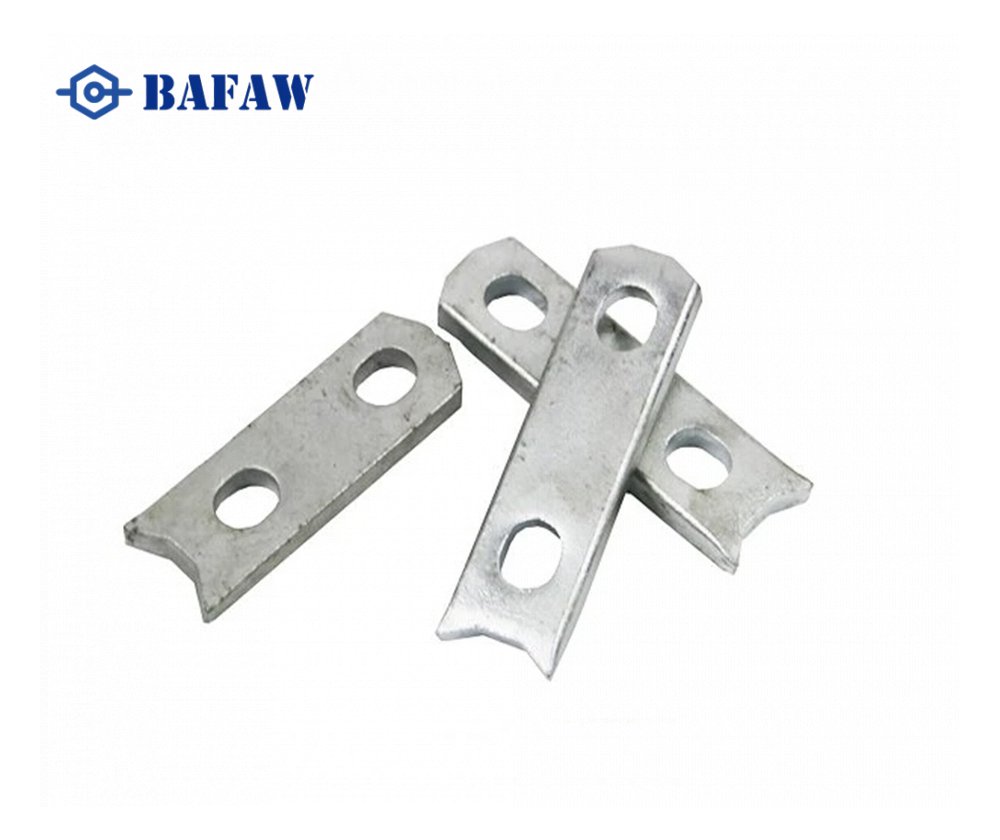

Erection Anchor | ||||||
Load rate(ton) | Size | Dimensions(mm) | Weight(KG) | |||

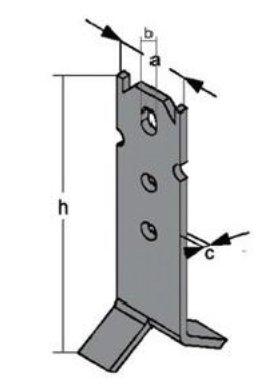

h | a | b | c | |||
1.4 | 1.4T-200 | 200 | 55 | 14 | 6 | 0.37 |
2.5 | 2.5T-230 | 230 | 55 | 14 | 10 | 0.69 |
4 | 4T-270 | 270 | 70 | 18 | 12 | 1.3 |
5 | 5T-290 | 290 | 70 | 18 | 15 | 1.66 |
7.5 | 7.5T-320 | 320 | 95 | 26 | 15 | 2.42 |
10 | 10T-390 | 390 | 95 | 26 | 20 | 3.95 |
12.5 | 12.5T-500 | 500 | 148 | 35 | 20 | 6.64 |
17 | 17T-500 | 500 | 148 | 35 | 25 | 8.18 |
22 | 22T-500 | 500 | 148 | 65 | 30 | 9.84 |
