Stainless Steel Forged Flanges, Steel Flange Manufacturer

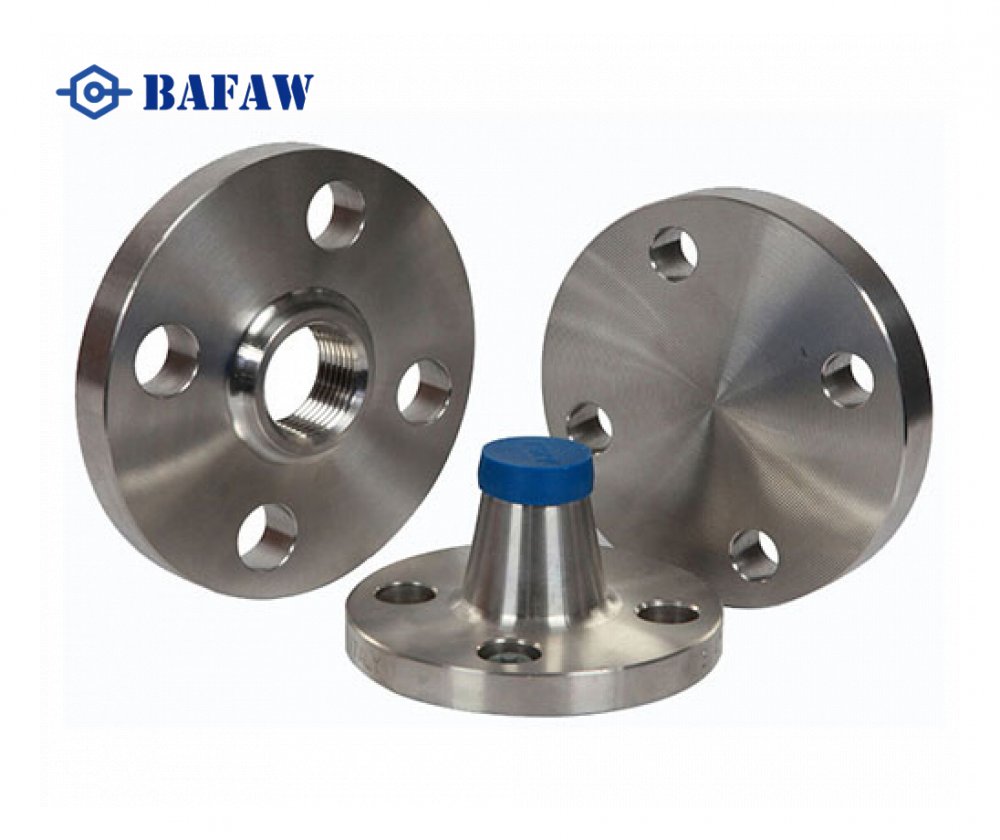

Stainless Steel Forged Flanges

Stainless steel forged flanges are essential components in piping systems, used to connect pipes, valves, pumps, and other equipment to form a complete piping system. They are known for their high strength, corrosion resistance, and durability.

1.Type: Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint and Plate etc;
2.Standard: ANSI, JIS, DIN, EN;
3.Material: 304/304L, 316/316L, 316H, 310, F321 F44 (UNS S31254)
Alloy Steel flanges ASTM A182 F1, F5a, F9, F11, F12, F22, F91;
4.Wall Thickness: Sch10, Sch20 , Sch30, STD, Sch40, XS,Sch80, Sch100, Sch120, Sch140, XXS;
5.Pressure Rating: Class 150LBS, 300LBS, 600LBS, 900LBS, 1500LBS, 2000LBS, 3000LBS, 6000LBS, 9000 LBS;
6.Size: 1/2" - 24";
7.Surface treatment: antirust oil, black / yellow / transparent / electric galvanized / hot galvanized.

Mechanical Properties (depending on the grade of stainless steel)

Property	ASTM A182 F304	ASTM A182 F316	ASTM A182 F321	ASTM A182 F347
Tensile Strength	75,000 psi (515 MPa)	75,000 psi (515 MPa)	75,000 psi (515 MPa)	75,000 psi (515 MPa)
Yield Strength	30,000 psi (205 MPa)	30,000 psi (205 MPa)	30,000 psi (205 MPa)	30,000 psi (205 MPa)
Elongation	35%	35%	35%	35%

Product Introduction

Dimensional Range

Size Range: 1/2" to 48" (DN 15 to DN 1200)
Pressure Rating: Class 150, 300, 600, 900, 1500, 2500 (PN 10 to PN 420)
Standards: ANSI/ASME B16.5, ANSI/ASME B16.47, EN 1092-1, DIN, JIS, BS

Surface Treatment (if required)

Polishing,Pickling,Passivation,Coating (as specified)

Application Fields

Industry	Example Applications
Oil and Gas	Pipelines, refineries, offshore platforms
Petrochemical	Chemical processing plants, storage tanks
Power Generation	Power plants, nuclear facilities
Water Treatment	Water and wastewater treatment plants
Pharmaceutical	Pharmaceutical production facilities
Food and Beverage	Food processing and manufacturing
Shipbuilding	Marine and shipbuilding industries
Construction	Structural applications, HVAC systems

If you need more detailed information or assistance with a particular flange, please provide the necessary specifications and requirements.
