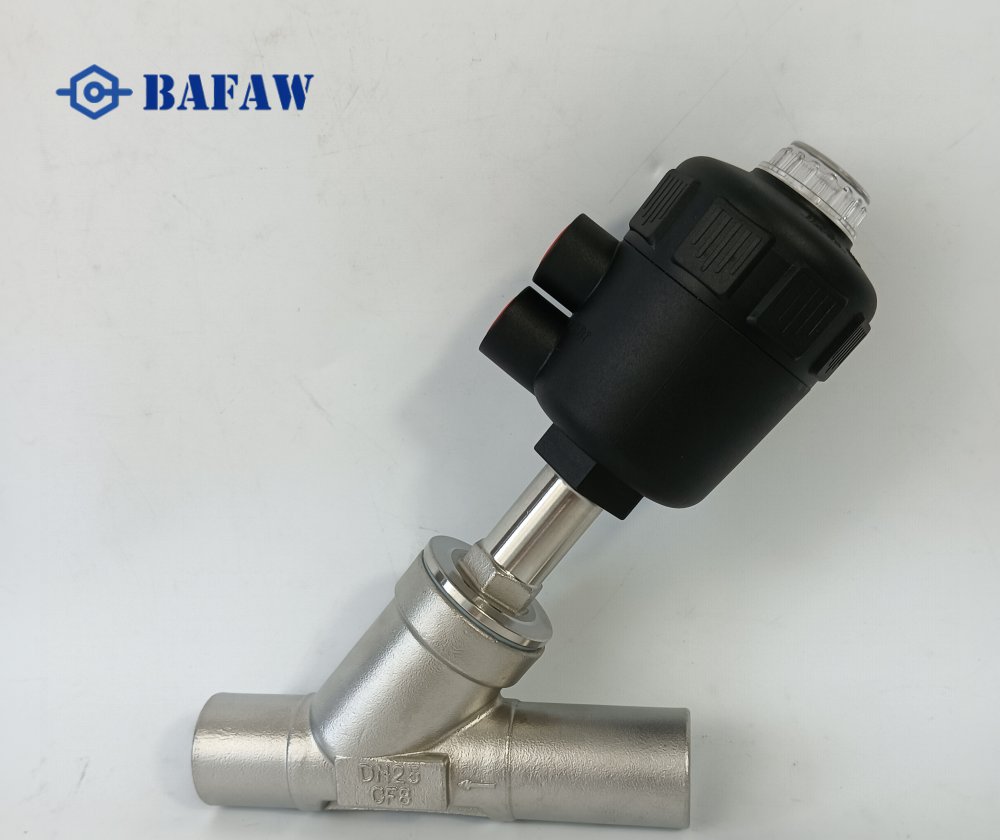

Plastic head pneumatic quick-install angle seat valve

Medium temperature-20℃~+180℃

Ambient temperature:-20℃~+60℃

Nominal pressure:1.6 MPa

Control gas,gas,air

Air pressure:0.3~0.8MPa

Specification: DN15-DN80

The valve body material: CF8/CF8M

seat materialPTFE

Stem material 304/316L

Sealing ring mnaterial: NBR

Product Introduction

Quick connector can be custorized according to user requirements

Model	L	d	C	D	A	H	E	Actuator	Waterproof hammer
DN15/Φ19	130	16	20	50.5	180	160	64	Φ50	Φ50
DN20/Φ25	130	21	25	50.5	185	160	64	Φ50	Φ50
DN25/Φ32	140	26	31	50.5	200/230	170/205	64.8	Φ50/Φ63	Φ63
DN32/Φ38	150	33	39	50.5	240	210	80	Φ63	Φ80
DN40/Φ45	180	41	46	64	250	215	80	Φ63	Φ80
DN40/Φ51	180	46	52	64	250	215	80	Φ63	Φ80
DN50/Φ57	195	50	55	64	260.28	220/230	80/100	Φ63/Φ80	Φ100
DN50/Φ63	195	58	64	77.5	285	235	100	Φ80	Φ100
DN65/Φ76	230	70	77	91	320	270	100	Φ80	Φ100
DN80/Φ89	250	83	90	106	360	310	126	Φ100	Φ125

Plastic head pneumatic quick-install angle seat valve are designed for efficient fluid control in various applications, featuring a lightweight plastic head that facilitates easy installation. These valves typically operate within a medium temperature range of -20°C to +180°C and can function in ambient temperatures from -20°C to +60°C, making them suitable for diverse environments.

Several options are available in the market, such as a 1/2" 304 stainless steel valve with PTFE sealing, capable of handling pressures up to 16 bar. Additionally, there are Y-type high-temperature resistant clamp valves designed for steam applications . These valves are particularly valued for their quick installation capabilities, allowing for rapid deployment in piping systems.

Overall, plastic head pneumatic quick-install angle seat valves are essential components in industries requiring reliable and efficient flow management, ensuring optimal performance in both low and high-temperature settings.
