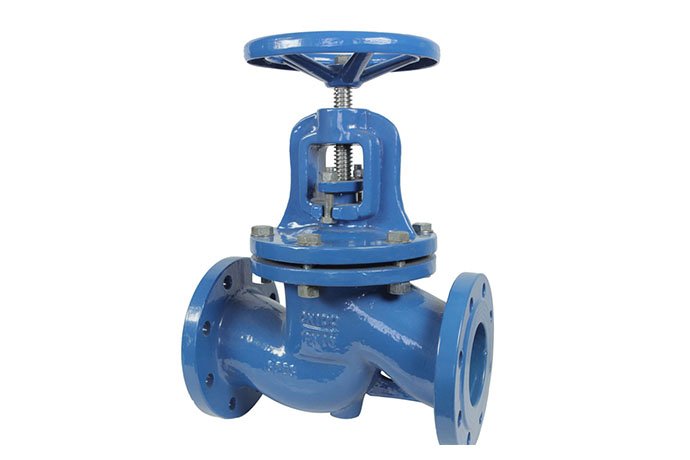

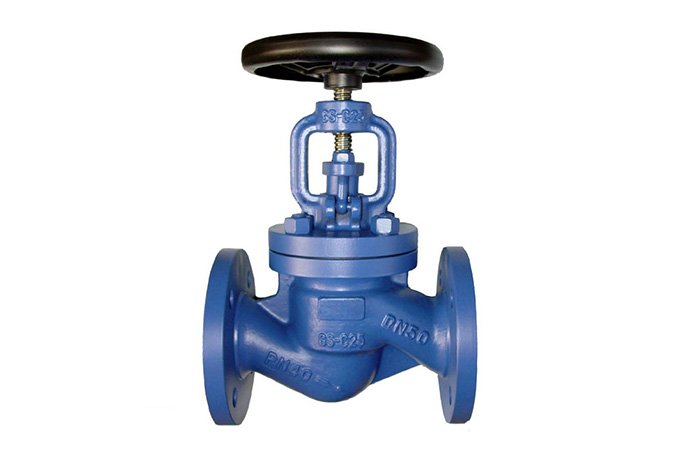

MSS SP-85 Cast Iron Globe Valve

MSS SP-85 Cast Iron Globe Valve

MSS SP-85 Cast Iron Globe Valve

MSS SP-85 Cast Iron Globe Valve

1.Standard:DIN3356/BS5152/MSS SP-85
2.Medium:water
3.size:DN50-DN300
4.Pressure:CLASS 125-300/PN10-40/200-600PSI
5.Material:CI,DI,CS
6.Driving mode:handwheel,bevel gear,gear

TECHNICAL REQUIREMENT :
● Design and Manufacture Conform to MSS SP-85
● Flange dimensions Conform to ANSI B16.1
● Face to Face dimensions Conform to ANSI B16.10
● Testing Conform to MSS SP-85

Product Introduction

No.	Part Name	Material
1	Body	ASTM A126B
2	Guide Spindle	2Cr13
3	Seat	ZCuSn5Pb5Zn5
4	Disc Seal Ring	ZCuSn5Pb5Zn5
5	Disc	ASTM A126B
6	Lock Ring	Red Copper
7	Disc Cover	HPb59-1
8	Stem	HPb59-1
9	Bonnet Gasket	GRAPHITE+08F
10	Bonnet	ASTM A126B
11	Bolt	CARBON STEEL
12	Packing	GRAPHITE
13	Packing Gland	HPb59-1
14	Gland Follower	ASTM A536 65-45-12
15	Stem Nut	ZCuZn38Mn2Pb2
16	Handwheel	EN-GJS-500-7
17	Nut	CARBON STEEL
18	Washer	100HV

Dimensions data(mm)

NPS	2	2½	3	4	5	6	8	10	12
Dn	51	63.5	76	102	127	152	203	254	305
L	203	216	241	292	330	356	495	622	698
D	152	178	191	229	254	279	343	406	483
D1	120.7	139.7	152.4	190.5	215.9	241.3	298.5	362	431.8
b	15.8	17.5	19	23.9	23.9	25.4	28.5	30.2	31.8
n-d	4-19	4-19	4-19	8-19	8-22	8-22	8-22	12-25	12-25
H	273	295	314.4	359	388	454	506	584	690
W	200	200	255	255	306	360	360	406	406
