Hex Head Plug Pipe Fitting

Hex Head Plug

Brand : BAFAW

Product origin : China

Delivery time : 30 Days

Supply capacity : 100000000 Piece/Pieces Per Year

Size:	1/8"-4"(6mm-100mm)
Specification:	Dim. Spec: ANSI B16.11 , MSS SP-79
Material Spec:	ASTM A105 , Stainless Steel304, SS304L, SS316, SS316L
Size of raw material:	DIA. 19-85MM Round Bar
Type:	Elbow, Cross, Street Elbow, Tee, Boss, Coupling, Half Coupling, Cap,Plug, Bushing, Union, Swage Nipple, Bull Plug, Reduced Insert, Pipe Nipple etc.
Connection Type:	Socket-Weld and Threaded (NPT, BSP)
Rating:	2000LBS, 3000LBS, 6000LBS, 9000LBS.
Marking:	1.Carbon and alloy steel: marked by stamping.
	2.Stainless:Marked by electro-etched or jet printed or stamped
	3.3/8" under: brand only
	4.1/2" to 4": marked brand. material. heat no. b16 (blong to ANSI B16. 11 product),pressure and size.
Paking:	Carton/ Plywood cases

Product Introduction

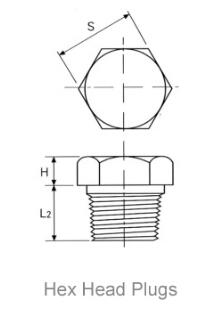

Nominal Pipe Size		Length	Square Head Plugs		Round Head Plugs		Hex Plugs and Bushings
Nominal Pipe Size		Length	Height of Square	Width Flats	Nominal Diameter of Head	Length	Width Flats (Nominal)	Hex Height
DN	NPS	L2 min	B min	C min	D	L min	S	K min	H min
6	1/8	10	6	7	10	35	11		6.0
8	1/4	11	6	10	14	41.0	16	3.0	6.0
10	3/8	13	8	11	18	41.0	18	4.0	8.0
15	1/2	14	10	14	21	44.0	22	5.0	8.0
20	3/4	16	11	16	27	44.0	27	5.0	10.0
25	1	19	13	21	33	51.0	36	6.0	10.0
32	1 1/4	21	14	24	43	51.0	46	7.0	14.0
40	1 1/2	21	16	28	48	51.0	50	8.0	16.0
50	2	22	17	32	60	64.0	65	9.0	18.0
65	2 1/2	27	19	36	73	70.0	75	10.0	19.0
80	3	28	21	41	89.0	70.0	90	10.0	21.0
100	4	32	25	65	114	76.0	115	13.0	25.0
