1. Pressure: 150lb, 200lb, 300lb
2. Media: seawater, oil, liquefied gas
3. Temperature: water below 120℃,oil, gas, steam below 220℃
4. End connection std: G, RC, RP, NPT, BSPT, BSP, DIN259/2999
Bronze Ball valve fittings are processed and assembled with fully automatic machining centres to ensure product accuracy and meet the hydraulic strength, suitable for water, solvents, acids and natural gas and other general working media, but also for harsh working conditions of the media, such as oxygen, hydrogen peroxide, methane and ethylene.
VALVE WARRANTY 2 YEARS, UNCONDITIONAL REPLACEMENT FOR QUALITY PROBLEMS.

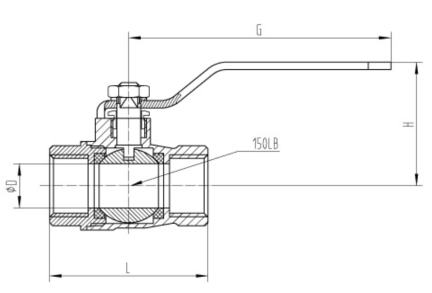

DN | SIZE | D | L | H | G | |
DN15 | 1-2 | 14 | 54 | 45 | 95 | |
DN20 | 3-4 | 18 | 64.5 | 50 | 110 | |
DN25 | 1 | 23.5 | 70.5 | 60 | 110 | |
DN32 | 1 1/4 | 29 | 83.5 | 65 | 140 | |
DN40 | 1 1/2 | 35 | 93.5 | 70 | 140 | |
DN50 | 2 | 45 | 119 | 85 | 160 | |
DN65 | 2 1/2 | 61 | 162 | 130 | 224 | |
DN80 | 3 | 72 | 189 | 148 | 224 | |
DN100 | 4 | 88 | 260 | 180 | 295 |
