1.size:DN50-DN600;2’’-24’’
2.Medium:water
3.Standard:EN12334/BS5153/MSS SP-71/AWWA C508
4.Pressure:CLASS 125-300/PN10-25/200-300PSI
5.Material:CI,DI
6.Type:wafer,swing
TECHNICAL REQUIREMENT
1. Working pressure: 1.0/1.6MPa
2. Working temperature:
NBR: 0℃~80℃
EPDM: -10℃~120℃
3. Face to face: DIN3202 F6
4. Flange standard: EN1092-2, ANSI125/150
5. Testing: DIN3230, API598
6. Medium: Fresh water, sea water, food, all kinds of oil etc.
NO. | PART | MATERIAL | |
1 | Body | GG25/GGG40 | |
2 | Ball | Metal+NBR/EPDM | |
3 | Cap | GG25/GGG40 | |
4 | Bolt | Stainless steel | |
5 | Gasket | NBR/EPDM |

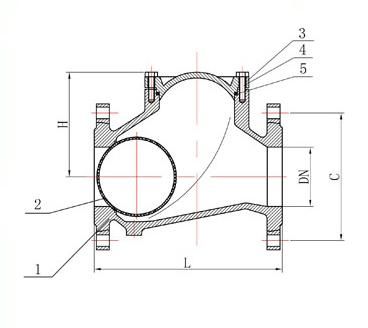

Dimensions data(mm)
DN (mm) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
ΦE (mm) | 180 | 200 | 240 | 260 | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 900 | |
L (mm) | 98 | 106 | 129 | 146 | 194 | 207 | 240 | 322 | 388 | 458 | 610 | 705 | |
ΦD (mm) | PN10 | Φ110 | Φ125 | Φ145 | Φ160 | Φ180 | Φ210 | Φ240 | Φ295 | Φ350 | Φ400 | Φ460 | Φ515 |
PN16 | Φ355 | Φ410 | Φ470 | Φ525 |
