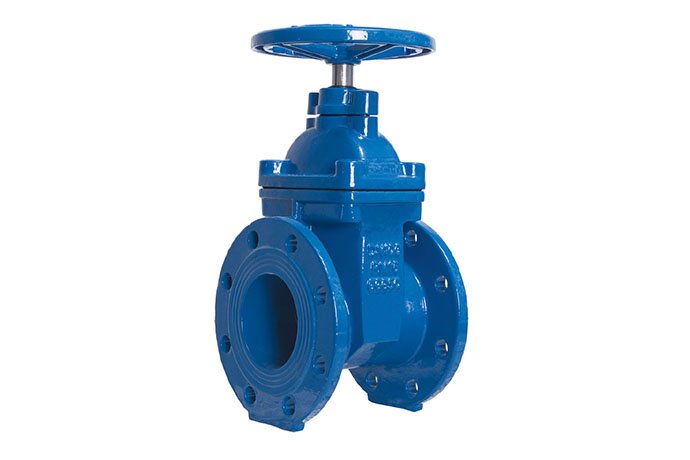

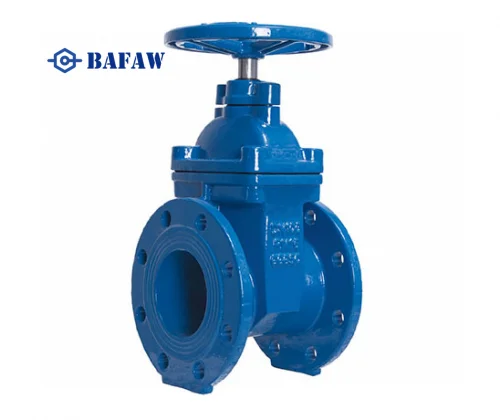

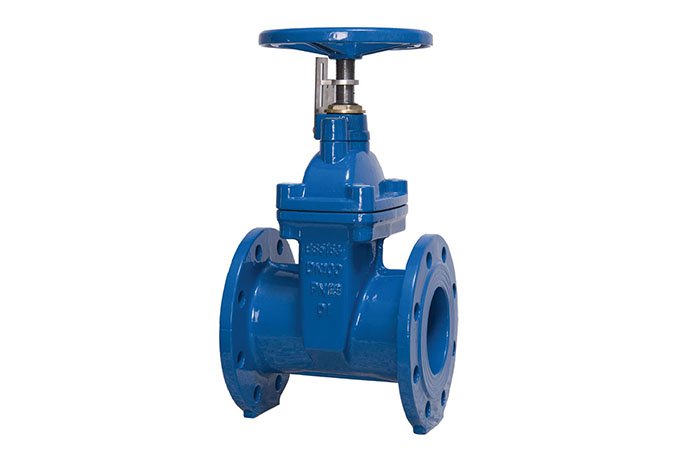

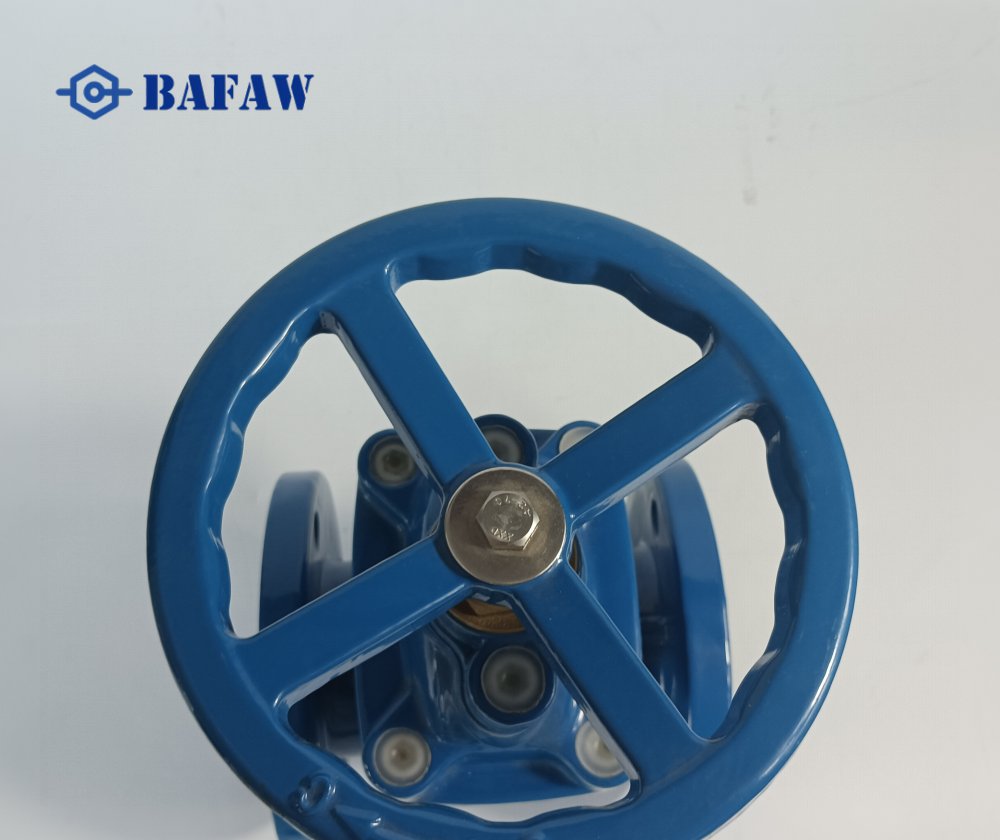

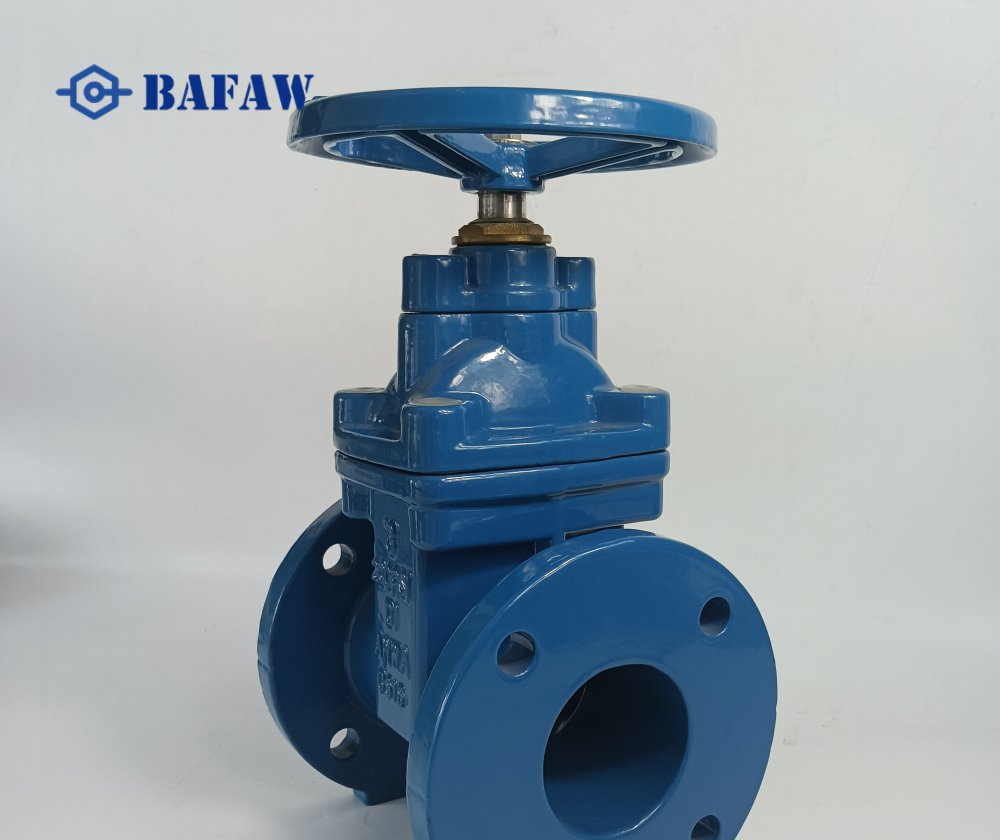

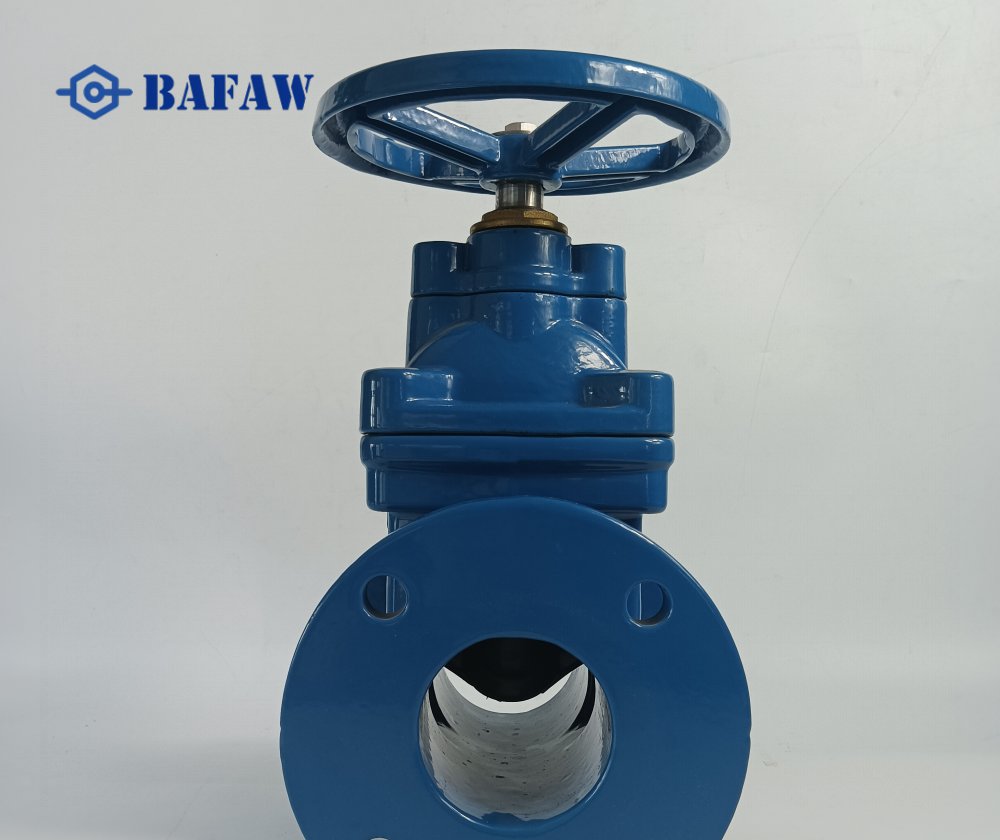

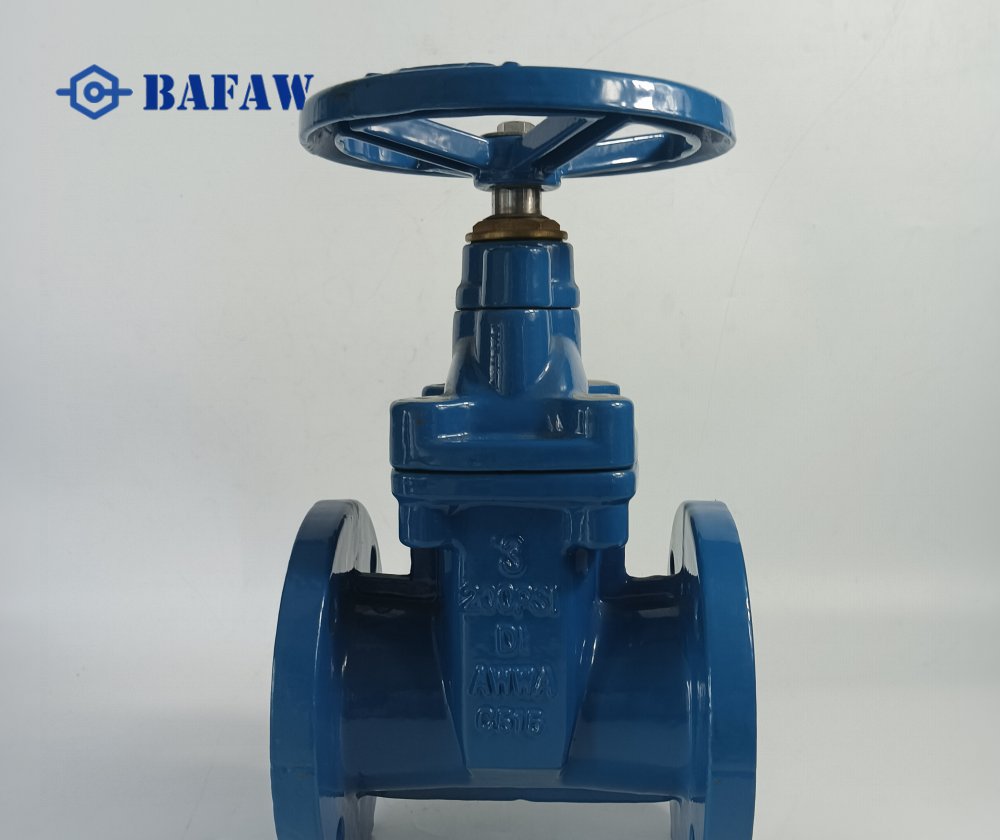

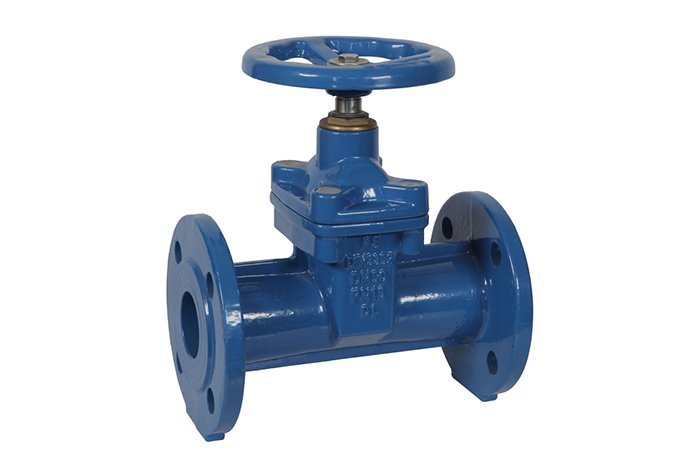

SABS 664 Ductile iron Gate Valve
1.Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150,SABS 664
2. Type: OS&Y,NRS
3. Size: DN50-DN600/2" - 24"
4. Material:CI,DI,STAINLESS STAIN,BRASS,BRONZE
5. Pressure:CLASS 125-300/PN10-25/200-300PSI
6. Driving mode:handwheel,bevel gear,gear
Description
TECHNICAL REQUIREMENT :
●Face to face is according to SABS 664
● Flange drilled is according to BS4504/EN1092
The wedge nut is made of dezincification-resistant brass and is designed as a fixed component of the wedge to prevent vibration and ensure durability.
Wedges and wedge nuts are fully vulcanised with potable water approved EPDM rubber
Stainless steel stem with wedge stop and rolled threads for strength
Full-round thrust collar provides secure stem alignment and ensures low operating torque
Triple safety stem seals with an outermost dust ring to protect against external contamination, four o-rings around the radial bearing in the centre, and an innermost lip seal that acts as a primary seal against system pressure
countersunk stainless steel A2 bonnet bolts with hot-melt adhesive seals and surrounded by bonnet gaskets for maximum corrosion protection
Full bore
250µm blue RAL 5017 epoxy coated to SANS 664
Specification

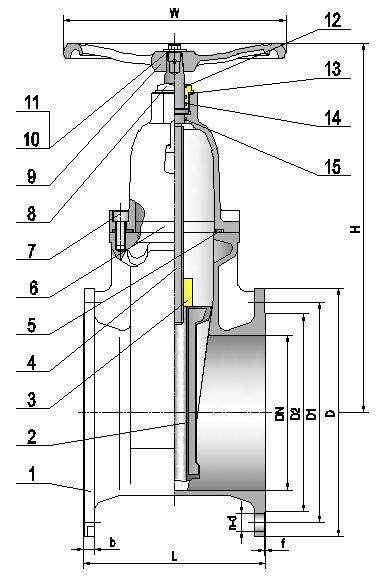

No. | Part Name | Material | |
1 | Body | EN-GJS-500-7 | |
2 | Rubber Disc | EPDM/NBR+DI. | |
3 | Stem Nut | ZCuAl10Fe3 | |
4 | Stem | 1Cr17Ni2 | |
5 | Bonnet Gasket | EPDM/NBR | |
6 | Bonnet | EN-GJS-500-7 | |
7 | Socket Cap Screw | Carbon Steel | |
8 | Seal Block | ZCuZn40Mn3Fe1 | |
9 | Handwheel | EN-GJS-500-7 | |
10 | Nut | Zinc-plated Carbon Steel | |
11 | Washer | Zinc-plated Carbon Steel | |
12 | Dustproof Seal Ring | EPDM/NBR | |
13 | O-ring | EPDM/NBR | |
14 | O-ring | EPDM/NBR | |
15 | O-ring | EPDM/NBR |
Dimensions data(mm)
DN | L | D | b | EN1092-2 PN10 | EN1092-2 PN16 | H | W | |||||
SABS665 | SABS664 | D1 | D2 | n-d | D1 | D2 | n-d | |||||
DN50 | 178 | 216 | 165 | 19 | 125 | 99 | 4-19 | 125 | 99 | 4-19 | 250 | 180 |
DN80 | 203 | 229 | 200 | 19 | 160 | 132 | 8-19 | 160 | 132 | 8-19 | 300 | 200 |
DN100 | 229 | 254 | 220 | 19 | 180 | 156 | 8-19 | 180 | 156 | 8-19 | 350 | 200 |
DN150 | 267 | 280 | 285 | 19 | 240 | 211 | 8-23 | 240 | 211 | 8-23 | 450 | 280 |
DN200 | 292 | 317 | 340 | 20 | 295 | 266 | 8-23 | 295 | 266 | 12-23 | 550 | 320 |
DN250 | 330 | 356 | 405 | 22 | 350 | 319 | 12-23 | 355 | 319 | 12-28 | 650 | 350 |
DN300 | 356 | 380 | 460 | 24.5 | 400 | 370 | 12-23 | 410 | 370 | 12-28 | 710 | 380 |
DN350 | 381 | 470 | 520 | 26.5 | 460 | 429 | 16-23 | 470 | 429 | 16-28 | 762 | 450 |
DN400 | 406 | 470 | 580 | 28 | 515 | 480 | 16-28 | 525 | 480 | 16-31 | 836 | 450 |
DN450 | 432 | 485 | 640 | 30 | 565 | 530 | 20-28 | 585 | 548 | 20-31 | 957 | 640 |
DN500 | 457 | 510 | 715 | 31.5 | 620 | 582 | 20-28 | 650 | 609 | 20-34 | 1036 | 640 |
DN600 | 508 | 600 | 840 | 36 | 725 | 682 | 20-31 | 770 | 720 | 20-37 | 1188 | 640 |
