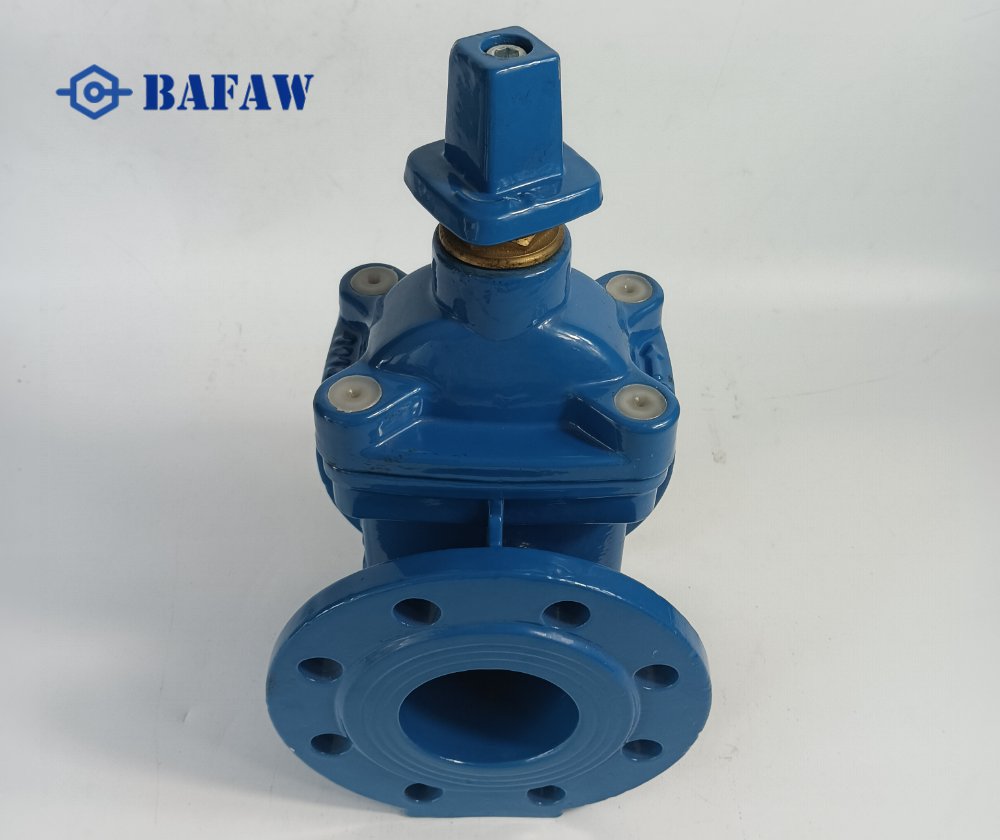

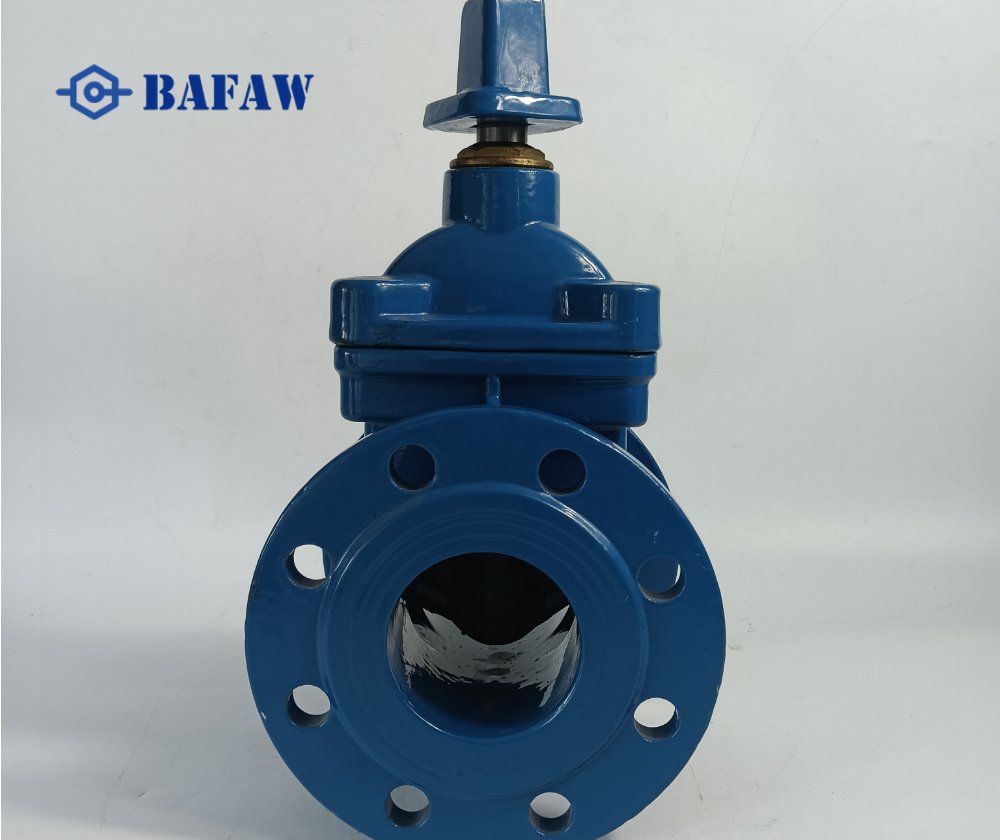

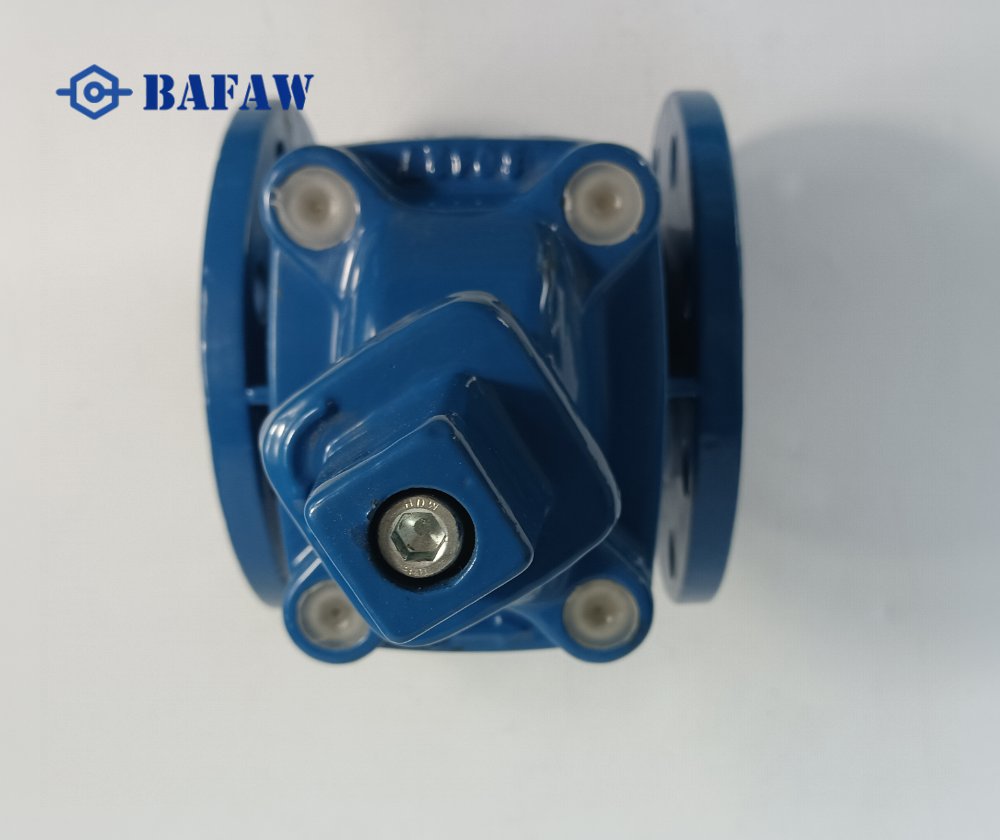

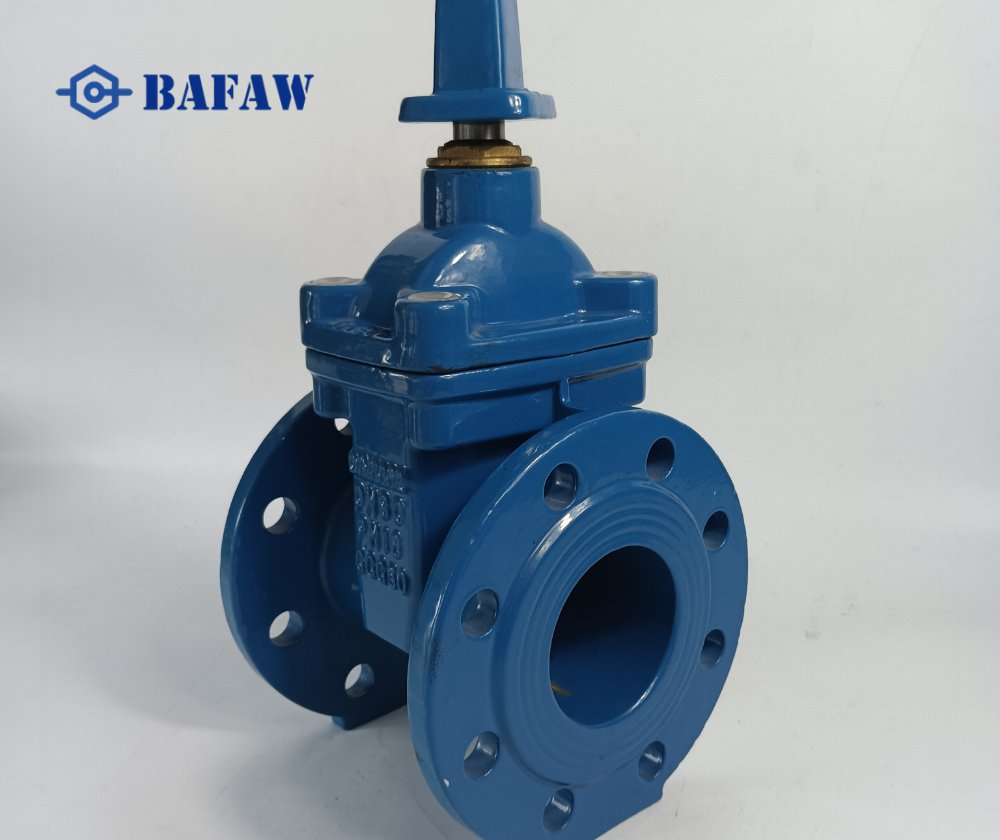

DIN3352 F4 Resilient Seat Cast iron Gate Valve
1. Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150
2. Type: OS&Y,NRS
3. Size: DN50-DN600/2" - 24"
4. Material:CI,DI,STAINLESS STAIN,BRASS,BRONZE
5.pressure:CLASS 125-300/PN10-25/200-300PSI
6.Driving mode:handwheel,bevel gear,gear
Description
TECHNICAL REQUIREMENT :
● Design and Manufacture Conform to EN1171,DIN3352,EN1074
● Flange dimensions Conform to EN1092-2 PN16
● Face to Face dimensions Conform to EN558-1 Series 14, DIN3202 F4
● Testing Conform to EN12266, ISO5208
● Driving mode: hand wheel, square Nut
Coating meets AWWA C550 standards - electrostatically fusion bonded epoxy coating inside and out for excellent corrosion resistance
F4 Gate Valve are used in city water supply, industrial pipeline oil, gas, chemical, steam, agricultural irrigation and other fields, featuring a simple structure, stable performance, good sealing.
Valve warranty 2 years, unconditional replacement for quality problems.
Specification
No. | Part Name | Material | |
1 | Body | EN-GJS-500-7 | |
2 | Rubber Disc | EPDM/NBR+DI. | |
3 | Stem Nut | ZCuAl10Fe3 | |
4 | Stem | 1Cr17Ni2 | |
5 | Bonnet Gasket | EPDM/NBR | |
6 | Bonnet | EN-GJS-500-7 | |
7 | Socket Cap Screw | Carbon Steel | |
8 | Seal Block | ZCuZn40Mn3Fe1 | |
9 | Hand wheel | EN-GJS-500-7 | |
10 | Nut | Zinc-plated Carbon Steel | |
11 | Washer | Zinc-plated Carbon Steel | |
12 | Dustproof Seal Ring | EPDM/NBR | |
13 | O-ring | EPDM/NBR | |
14 | O-ring | EPDM/NBR | |
15 | O-ring | EPDM/NBR |
Dimensions data(mm)
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
L | 150 | 170 | 180 | 190 | 200 | 210 | 230 | 250 | 270 | 290 | 310 | 330 | 350 | 390 |
D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | 520 | 580 | 640 | 715 | 840 |
D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 | 525 | 585 | 650 | 770 |
D2 | 99 | 118 | 132 | 156 | 184 | 211 | 266 | 319 | 370 | 429 | 480 | 548 | 609 | 720 |
b | 19 | 19 | 19 | 19 | 19 | 19 | 20 | 22 | 24.5 | 26.5 | 28 | 30 | 31.5 | 36 |
n-d | 4-19 | 4-19 | 8-19 | 8-19 | 8-19 | 8-23 | 12-23 | 12-28 | 12-28 | 16-28 | 16-31 | 20-31 | 20-34 | 20-37 |
f | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 5 |
H | 226 | 265 | 288 | 320 | 364 | 410 | 502 | 596 | 681 | 810 | 905 | 1008 | 1135 | 1310 |
W | 200 | 200 | 200 | 255 | 255 | 306 | 306 | 360 | 360 | 406 | 406 | 508 | 508 | 508 |
