BS5163 Resilient Seated Non-Rising Stem Cast iron Gate Valve
1. Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150,SABS 664
2. Type: OS&Y,NRS
3. Size: DN50-DN600/2" - 24"
4. Material: CI, DI,STAINLESS STAIN,BRASS,BRONZE
5.pressure:CLASS 125-300/PN10-25/200-300PSI,PN10,PN16,PN25
6.Driving mode: hand wheel, bevel gear, gear.
Description
TECHNICAL REQUIREMENT :
● Design and Manufacture Conform to BS5163
● Flange dimensions Conform to EN1092-2 PN10,PN16,PN25
● Face to Face dimensions Conform to BS5163
● Testing Conform to BS5163、EN12266-1
● Driving mode: hand wheel, square cover
Coating meets AWWA C550 standards - electrostatically fusion bonded epoxy coating inside and out for excellent corrosion resistance
BS5163 resilient seat gate valve are used in the fields of urban water supply, industrial pipeline oil, gas, chemical industry, steam, agricultural irrigation, etc. They are characterised by simple structure, stable performance and good sealing.
VALVE WARRANTY 2 YEARS, UNCONDITIONAL REPLACEMENT FOR QUALITY PROBLEMS.
Specification

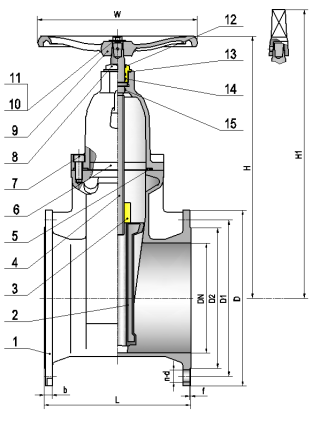

No. | Part Name | Material | |
1 | Body | EN-GJS-500-7 | |
2 | Rubber Disc | EPDM/NBR+DI. | |
3 | Stem Nut | ZCuAl10Fe3 | |
4 | Stem | 1Cr17Ni2 | |
5 | Bonnet Gasket | EPDM/NBR | |
6 | Bonnet | EN-GJS-500-7 | |
7 | Socket Cap Screw | Carbon Steel | |
8 | Seal Block | ZCuZn40Mn3Fe1 | |
9 | Hand wheel | EN-GJS-500-7 | |
10 | Nut | Zinc-plated Carbon Steel | |
11 | Washer | Zinc-plated Carbon Steel | |
12 | Dustproof Seal Ring | EPDM/NBR | |
13 | O-ring | EPDM/NBR | |
14 | O-ring | EPDM/NBR | |
15 | O-ring | EPDM/NBR |
Dimensions data(mm)
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
L | 177.8 | 190 | 203.2 | 228.6 | 254 | 266.7 | 292.1 | 330.2 | 355.6 | 381 | 406 | 432 | 457 | 508 |
D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | 520 | 580 | 640 | 715 | 840 |
D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 | 525 | 585 | 650 | 770 |
D2 | 99 | 118 | 132 | 156 | 184 | 211 | 266 | 319 | 370 | 429 | 480 | 548 | 609 | 720 |
b | 19 | 19 | 19 | 19 | 19 | 19 | 20 | 22 | 24.5 | 26.5 | 28 | 30 | 31.5 | 36 |
n-d | 4-19 | 4-19 | 8-19 | 8-19 | 8-19 | 8-23 | 12-23 | 12-28 | 12-28 | 16-28 | 16-31 | 20-31 | 20-34 | 20-37 |
f | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 5 |
H | 226 | 265 | 288 | 320 | 364 | 410 | 502 | 596 | 681 | 810 | 905 | 1008 | 1135 | 1310 |
H1 | 291 | 326 | 352 | 383 | 427 | 473 | 564 | 657 | 742 | 885 | 980 | 1083 | 1210 | 1385 |
W | 200 | 200 | 200 | 255 | 255 | 306 | 306 | 360 | 360 | 406 | 406 | 508 | 508 | 508 |
