ANSI Cast iron ball valve
Design and Manufacture : ANSI B16.34
Face to Face: ANSI B16.10
End Flange Dimensions : ANSI B16.1
Nominal Pressure : CLASS 125
Pressure Test : API598
Mounting Pad : ISO5211
I want to inquire
Add to Inquiry Sheet
Description
Cast iron ball valve : Min Temperature : -10°C
Cast iron ball valve : Max Temperature :+ 200°C
Max Pressure : 16 Bars
Specifications : Full bore
Solid stainless steel ball up to DN 25, hollow ball from DN 32 to DN 200
Cast iron ball valves are widely used in petroleum, chemical, metallurgy, electric power, water treatment, municipal engineering and other fields.
VALVE WARRANTY 2 YEARS, UNCONDITIONAL REPLACEMENT FOR QUALITY PROBLEMS.

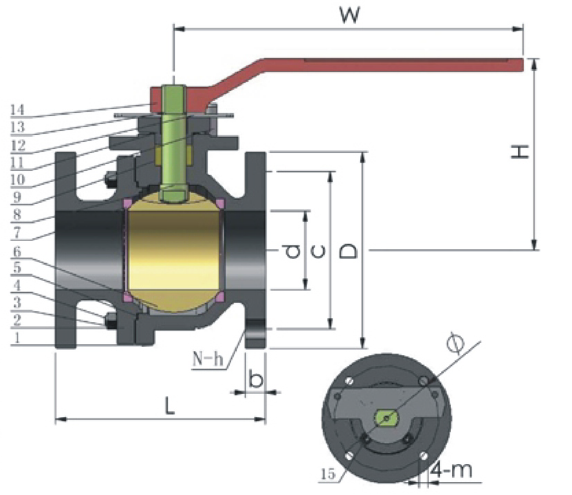

| NO. | Part Name | Material |  |
| 1 | Body | Cast iorn | |
| 2 | Bonnet | Cast iorn | |
| 3 | Nut | Cast steel | |
| 4 | Bolting | Cast steel | |
| 5 | Gasket | PTFE | |
| 6 | Ball | Stainless steel | |
| 7 | Seat | PTFE | |
| 8 | Stem | Stainless steel | |
| 9 | Stem Packing | PTFE | |
| 10 | Stop pin | Steel | |
| 11 | Gland flange | Cast iron | |
| 12 | Stop collar | Cast steel | |
| 13 | Washer | Steel | |
| 14 | Handle | Ductile iron | |
| 15 | Gland bolt | Steel |
Specification
| SIZE | DN | d | L | D | C | b | N-h | Φ | 4-m | H | W |
| 2 | 15 | 50 | 178 | 152 | 120.5 | 15.9 | 4-Φ19 | 70 | M8 | 144 | 250 |
| 2 1/2 | 20 | 65 | 190 | 178 | 139.5 | 17.5 | 4-Φ19 | 102 | M10 | 163 | 350 |
| 3 | 25 | 80 | 203 | 191 | 152.5 | 19.1 | 4-Φ19 | 102 | M10 | 187 | 400 |
| 4 | 32 | 100 | 229 | 229 | 190.5 | 22.3 | 8-Φ19 | 125 | M12 | 205 | 600 |
| 6 | 40 | 150 | 267 | 279 | 241.5 | 25.4 | 8-Φ22 | 140 | M16 | 271 | ----- |
| 8 | 50 | 200 | 292 | 343 | 298.5 | 28.6 | 8-Φ22 | 165 | M16 | ----- | ----- |
| 10 | 65 | 250 | 330 | 406 | 362 | 30.2 | 12-Φ22 | 165 | M16 | ----- | ----- |
